Double-diaphragm pump 5243-340fuelelectricself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- double-diaphragm
- Fluid
- fuel
- Operation
- electric
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial, for the chemical industry, for the petrochemical industry, for the automotive industry, for the printing industry, for the steel industry, for foundry applications
- Applications
- transfer, circulation, drain, feed, for industrial applications, unloading, refueling
- Material
- stainless steel
- Fluid specification
- for aggressive media, for high-viscosity fluids
- Protection level
- chemical-resistant
- Other characteristics
- high-flow, rugged, oil-free, corrosion-proof, adjustable-flow, oscillating
- Flow
370 l/min
(97.74366 us gal/min)- Pressure
8 bar
(116.03 psi)- Fluid temperature
100 °C
(212 °F)
Description

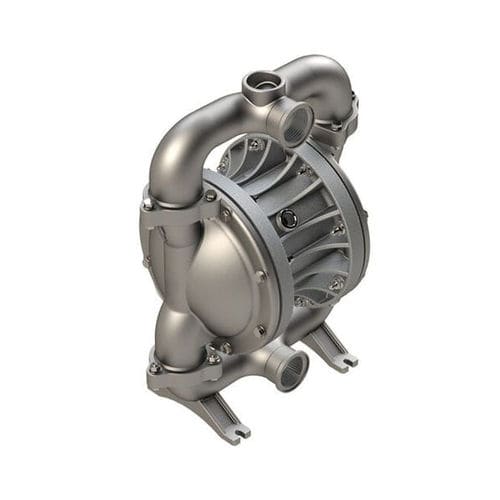

Double-diaphragm pump Stainless Steel 1 1/2"
Description:
The double diaphragm pump is suitable for large scale industry and plant feeding as well as for large flow rates and higher viscosities.
* typical applications: Transfer from drums and containers, transfer of corrosive solutions and chemicals
* integrated muffler up to model size AODD 1"
* also available in the Pure version (5244-410)
Features & Benefits
* high hydraulic performance
* maintenance-optimised design and simple installation
* self-priming (even when dry)
* absolutely oil-free
* non-stalling operation
* conductive version approved according to ATEX Directive 2014/34/EU, Category 2
