Diaphragm pump 5252-240fuelelectricself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- fuel
- Operation
- electric
- Priming
- self-priming
- Mobility
- stationary, mobile
- Domain
- industrial, for the chemical industry, for the petrochemical industry, for the automotive industry, for the printing industry, for the steel industry
- Applications
- transfer, circulation, drum, drain, feed, refueling
- Material
- aluminum
- Fluid specification
- for aggressive media, for solids-laden fluids, for mineral oil, for flammable fluids
- Protection level
- chemical-resistant, explosion-proof
- Other characteristics
- rugged, oil-free, adjustable-flow
- Flow
715 l/min
(188.88302 us gal/min)- Pressure
8 bar
(116.03 psi)- Fluid temperature
100 °C
(212 °F)
Description

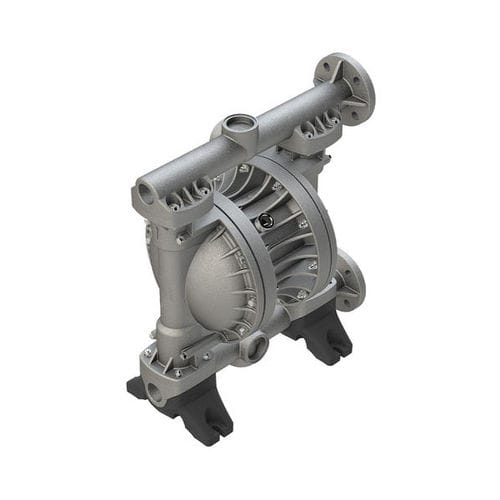

Double diaphragm pump 2" metal - 5252-240
Description:
The double diaphragm pump is suitable for large scale industry and plant feeding as well as for large flow rates and higher viscosities.
* typical applications: Transfer from drums and containers, transfer of corrosive solutions
and chemicals
* integrated muffler up to model size AODD 1"
* also available in the Pure version (5254-410)
Features & Benefits
* high hydraulic performance
* maintenance-optimised design and simple installation
* self-priming (even when dry)
* absolutely oil-free
* non-stalling operation
* conductive version approved according to ATEX Directive 2014/34/EU, Category 2
