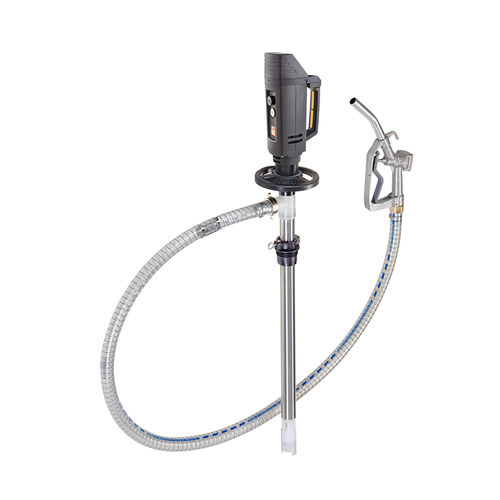

Mineral oil pump 0205-301
oilpneumaticself-priming

mineral oil pump
mineral oil pump
mineral oil pump
mineral oil pump
mineral oil pump
Add to favorites
Compare this product


Characteristics

Fluid
oil
Operation
pneumatic
Priming
self-priming
Technology
impeller
Mobility
stationary
Domain
industrial, for oil industry applications, for the automotive industry, for the printing industry
Applications
transfer, drum, drain, extraction
Material
aluminum
Fluid specification
for aggressive media, for mineral oil
Voltage
24 V
Other characteristics
radial, with variable-speed controller
Flow

Max.: 45 l/min
(11.88774 us gal/min)

Min.: 0 l/min
(0 us gal/min)

Head

Max.: 11.8 m
(38'08" )

Min.: 0 m
(0'00" )

Power

320 W
(0.44 hp)

Fluid temperature

50 °C
(122 °F)

Input diameter

41 mm
(1.614 in)

Description

Battery Pump set - Mineral oils The new B3 Battery is a battery motor for demanding and efficient pump applications. The current-independent application range enables the greatest possible flexibility with the world's highest volume flow of a battery pump (up to 180 l/m). Perfectly suited for the extraction or transfer of mineral oils. * Media examples: Diesel, heating oil, hydraulic oil, machine oil and motor oil etc. * Pump tube equipped with Lutz original hand wheel * Suitable for filling or decanting alternative fuels Features & Advantages * wear-free, particularly low-noise BLDC motor * optimized drum emptying * infinitely variable * extremely high performance with low weight * Maintenance without special tools * Sealing modules of the sealless (DL) pump can be replaced * long service life
