A lighting system for Touchdown and Lift-Off (TLOF) area must be present in every heliport where night operations are conducted.
TLOF lighting system is composed by green omnidirectional lights located on the TLOF boundaries: minimum of 14 lights for round areas or minimum 4 lights for square areas (maximum distance between beacons must not exceed 3 meters).
This product is the ideal solution when looking for low power consumption.

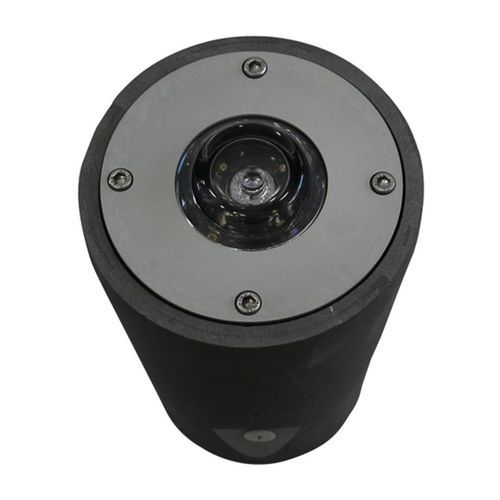

LUXSOLAR TLOF-INSET Light, mono-LED type, has been designed to be a compact (just 12,54mm above the ground landing area), lightweight and low-consumption product; it can be easily installed and a balance of patented optics, electronics and mechanical components make this device the most reliable, high-quality and cost-effective LED INSET perimeter light available on the market.
• Based on LED technology
• GREEN light - Steady burning
• Intensity available: 30cd
• Long life time >10 years life expectancy
• Low consumption
• Lightweight and compact
• Carriageable
• Degree of Protection: IP66
• No RF-radiations
• Easy to install
• Fully ICAO compliant (ISO/IEC 17025 accredited third party laboratory)
