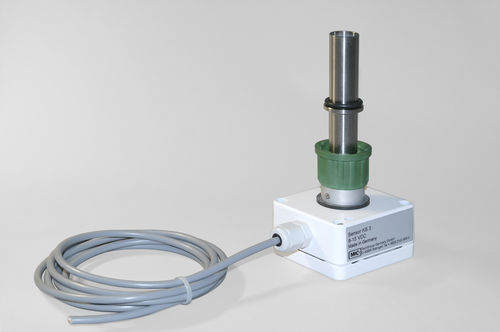

Capacitive level sensor KS3 PEEK

for liquids

- Liquid sensor for conductive and non-conductive media - Integrated preamplifier in robust aluminium sensor housing - Connection: ø 16 mm with GL 25 union nut - With 1.5 m electrical connecting cable - Material of sample-contacting parts: PEEK, stainless steel, Chemraz® For non-conductive media. The new liquid alarm sensor type KS3 replaces the KS2. The KS3 is an adequate replacement for the KS2.Ex model. The former KS2 plastic enclosure has been replaced by a rugged aluminium case. Liquid alarm sensors are used in gas sample conditioning systems for monitoring gas cooling and condensate drain-off devices in order to provide protection for downstream analysis instruments. The monitoring device KS3 reliably signals the penetration of non- conductive (e.g. alcohol) or conductive (e.g. water) liquid in the case of cooling or condensate drain-off equipment being defective, thus avoiding expensive downtime as well as high repair costs for analysis instruments. In the event of an alarm, the power supply for the sample gas pump must be switched off or a solenoid valve must be switched idle in the sample conditioning system. Liquid alarm sensor type KS3 for non‑conductive media, 16 mm diameter, with GL 25, 1.5 m connecting cable, material: stainless steel 316 Ti, Chemraz®, PEEK
