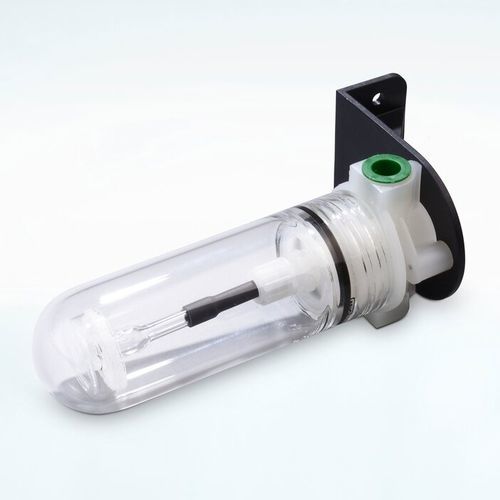

Water filter FP-BF

gasbasketglass

- Humidifier vessel with gas bubbler - Optimum humidifying effect - Content: 70 ml - Connections: G 1/4" i - Low stagnant space - Wall-mounting - Material of sample-contacting parts: PVDF, glass, FKM Humidfier with small dead volume to moisten the gas For the zero point calibration of analyzers that are water vapor cross-sensitive, the humidifier vessel FP-BF in front of the gas cooler is used to humidify the N2 zero gas in order to take water vapour cross-sensitive errors into account. Before entering the cooler, the zero gas passes the humidifier and leaves the cooler saturated at a stable dew point as well as the sample gas, e.g. at 5 ° C. Test gases with water-soluble components must not be passed via the humidifier. Humidifier vessel type FP‑BF with bubbler F‑W, content: 70 ml, connection: G 1/4" f, material: PVDF, Viton®, glass
