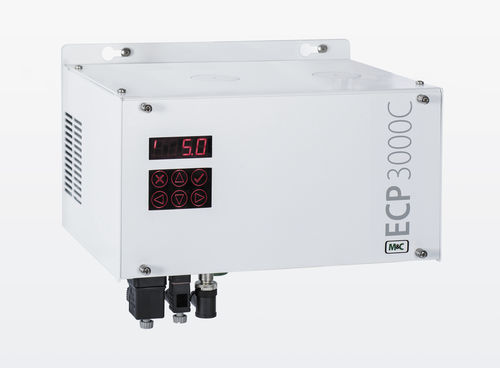

Gas cooler ECP3000C

electricadjustablePeltier effect

- Peltier gas cooler for 1 Jet-Stream heat exchanger with a gas flow rate of max. 350 Nl/h - Can be used up to an ambient temperaure as standard - Adjustable gas outlet dew point with a stability of < ±0.1 °C [±0.18 °F] at constant conditions - Control setpoint selectable between absolute and differential temperature value mode - With a total cooling capacity of 110 kJ/h at +25 °C [+77 °F] ambient temperature - Universally usable with broadband power supply - Configurable, potential-free alarm output - Integrated evaluation for liquid alarm sensors LA1 and LA1S - Optionally: 1 Jet-Stream heat exchanger, automatic or manual condensate removal, configurable mA output (no shielding necessary), measuring of the gas outlet temperature in the gas path The ECP 3000C gas cooler is used in gas analysis to lower the dew point of humid to avoid condensation in the analyser. An extremly stable gas dew point avoids water vapour crosssensitivity and volumetric errors. Electric gas cooler type ECP3000C with display and capacitive control panel, for ambient temperatures , with Peltier element, electronically regulated between +2 and +15 °C (pre‑set to +5 °C), adjustable high/low‑temperature alarm with 1 potential‑free relay contact, integrated LA evaluation, without heat exchanger, power: 115 to 230 V AC/50 to 60 Hz pluggable
