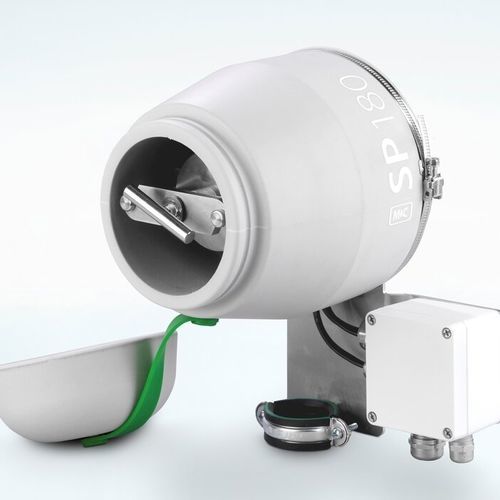

Gas sampling probe SP 180-H

heated

- Compact gas sample probe with self-regulating heater - With innovative weather protection cover for outdoor mounting - With test gas connection according to EN 14181 - Filter housing and mounting flange can be heated to max. 180 °C [356 °F] - With low-temperature alarm contact: < 160 °C [320 °F], NO - With compact ceramic filter element, other materials available - Small dead volume and fast response time - Easy installation and low maintenance - Power: 110–240 V - Material of sample-contacting parts: stainless steel, FKM, ceramic - Optionally: sample tube, pre-filter, flange for test gas connection The electrically heated M&C gas sample probe version SP180-H is applicable for continuous gas sampling. The compact design requires only limited space. The gas sample probe SP180-H is equipped with an extra protective cover. Gas sample probe type SP180‑H with external ceramic filter element type S‑2K (75 mm), filter porosity: 2 µm, external filter electrically heated up to 180 °C with self‑regulating heating elements, low‑temperature alarm, with potential‑free contact output triggered at ‑20 °C below Tset, including innovative weather protection cover for outdoor use, power: 110 V‑240 V, 50/60 Hz, 400 W, mounting flange: DN 65 PN 6B with connection thread G 3/4" f, material: SS 316Ti, SS 316L, Viton®, ceramic, connection: sample gas outlet: tube screw fitting DN 4/6, calibration gas connection: screw fitting for tube DN 4/6 with blind cap
