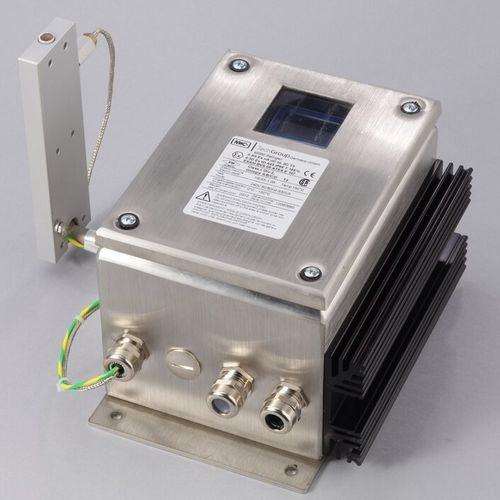

Gas sampling probe HEX5-1.08

regulated

- Ex heater with temperature controller integrated in the terminal box - Approval according to ATEX, CSA and FM for sampling from gas Ex zone 2 or 22 and Class I Division 2, respectively - For gas sample probe type SP3200, mounting is carried out by M&C - Temperature controller is factory-set to the required temperature class T2 to T5, and locked to prevent unauthorized access - Max. operating temperature between 70 and 230 °C [158 and 446 °F], depending on temperature class - With high-temperature limiter and low-temperature alarm - Power: 240 V Option: Ex heater type HEX 5‑1.08, ATEX‑certified version for Ex zone 2/22 with the marking: EXAM BVS 09 ATEX 107, IECEx BVS 16.0025, II 3 G Ex ec nC IIC temperature class T5 bis T2 Gc, II 3 D Ex tc IIIC T 75 °C bis 235 °C Dc and\cf0 additionally according to: CSA Class I, DIV 2, A/B/C/D, temperature sensor Pt100 and temperature controller 70304 in a housing, max. ambient temperature 50 °C, power: 240 V, 50/60 Hz, 830 W,\fs16 pl ease indicate the additional item number (20S9608 ‑ 20S9618) for temperature class T2 ‑ T5 when ordering
