Gas sampling probe HEX5-2.08
Pt100regulated

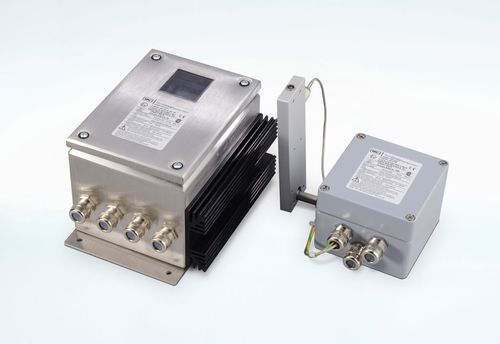

Gas sampling probe - HEX5-2.08 - M&C TechGroup Germany GmbH - Pt100 / regulated
Gas sampling probe - HEX5-2.08 - M&C TechGroup Germany GmbH - Pt100 / regulated
Gas sampling probe - HEX5-2.08 - M&C TechGroup Germany GmbH - Pt100 / regulated - image - 2
Add to favorites
Compare this product


Characteristics

Type
gas sampling
Technology
Pt100
Other characteristics
regulated

Description

- Ex heater with external temperature controller in a separate wall-mounting housing - Approval according to ATEX, CSA and FM for sampling from gas Ex zone 2 or 22 and Class I Division 2, respectively - For gas sample probe type SP3200, mounting is carried out by M&C - Temperature controller is factory-set to the required temperature class T2 to T5, and locked to prevent unauthorized access - Max. operating temperature between 70 and 230 °C [158 and 446 °F], depending on temperature class - With high-temperature limiter and low-temperature alarm - Power: 240 V Option: Ex heater type HEX 5‑2.08, ATEX certified version for hazardous zone 2/22 with the marking: EXAM BVS 09 ATEX 107 IECEx BVS 16.0025, II 3 G Ex ec nC IIC temperature classT5 bis T2 Gc, II 3 D Ex tc IIIC T 75 °C to 235 °C Dc, \cf0and additionally according to: CSA Class I, DIV 2, A/B/C/D temperature sensor Pt100 and temperature controller 70304 in a housing, separate mounting, max. ambient temp.: 50 °C, power: 240 V,50/60 Hz,830 W, please indicate the additional part number (20S9608‑20S9618) for the temperature class T2‑T5 when ordering
