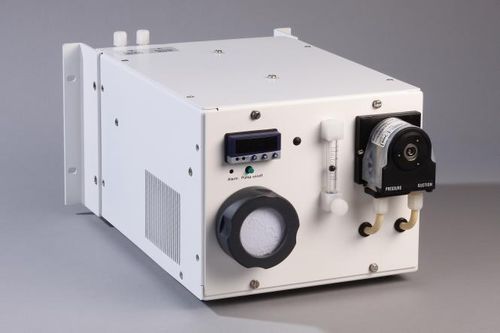

Sample gas conditioning system CSS-M/W

- Gas conditioning system with Peltier gas cooler for wall-mounting - Compact design with low weight of approx. 11 kg [≈ 24.3 lbs] - Gas flow rate: max. 70 Nl/h - Gas outlet dew point adjustable from +2 to +15 °C [+35.6 to +59 °F] - Dew point stability < ±0.1 °C [±0.18 °F] - Self‑monitoring and low maintenance - Ready for operation in approx. 10 minutes - Power: 230 V The M&C gas conditioning unit CSS-M/W is a compact, completely pre-installed continuous gas conditioning system for gas flow of max. 70 Nl/h. The entire gas conditioning unit is housed in a compact and robust steel case to enable the user to carry out a rapid and reliable gas analysis. It requires only little maintenance work. The components built into the CSS-M/W gas conditioning unit can be used for standard applications. Gas conditioning system type CSS‑M/W for 70 Nl/h in a steel‑sheet housing for wall‑mounting, consisting of: Peltier gas cooler ECP regulated to 5 °C, fine filter FPF‑2 with liquid alarm, sample gas pump N3 KPE, peristaltic pump SR25.2 and flow meter FM40, power: 230 V/50 Hz, the sample gas pump starts automatically when the gas cooler falls below +8 °C
