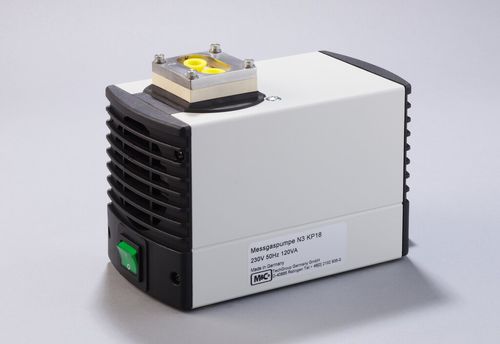

Sampling pump N3 KP18for gaselectricdiaphragm
Add to favorites
Compare this product
Characteristics
- Fluid
- for gas
- Operation
- electric
- Technology
- diaphragm
- Mobility
- stationary
- Domain
- industrial
- Applications
- sampling
- Material
- PTFE
- Voltage
- 230 V, 115 V
- Other characteristics
- compact, analytical
- Pressure
Min.: 0.25 bar
(3.626 psi)Max.: 2.5 bar
(36.259 psi)- Fluid temperature
Min.: 5 °C
(41 °F)Max.: 180 °C
(356 °F)
Description
Diaphragm pump with housing
Capacity at atmospheric pressure: max. 3 Nl/min
Max. operating pressure range: 0.25 to 1.95 bar abs.
Compact design
Corrosion-resistant
100 % lubricant-free
High level of gas tightness
Power: 230 V
Material of sample-contacting parts: PVDF, PTFE, FKM
With enclosure, material: PVDF, FPM, different flow capacities, power: 115 V/60 Hz or 230 V/50 Hz
The compact diaphragm pumps type N3/5/9 are suitable for sampling air, gases and vapours in a temperature range between + 5 °C and + 40 °C. The construction and the pump capacity are adapted to the requirements of analytical technology.
Diaphragm pump type N3KP18 with housing, flow rate: 3 Nl/min, connections: G 1/8" f, material: PVDF, Viton®, power: 230 V/50 Hz
