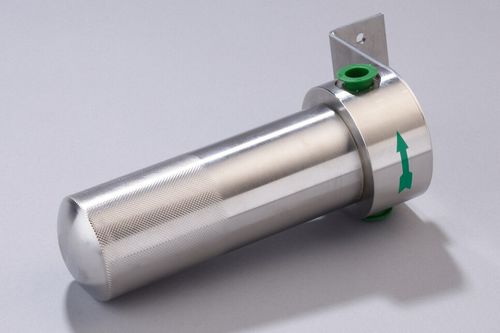

Cartridge filter housing FSS-20K

for liquidsstainless steel

-Modular designed filter with filter head and body made of stainless steel -Deep-acting ceramic filter element with a filter porosity of 20 µm -High separation efficiency at low differential pressure -With wall-mounting bracket -Straightforward filter element change without tools -3 female threaded gas connections: G 1/4" -Sample gas and ambient temperature: max. +180 °C [+356 °F] - Material of sample-contacting parts: ceramic, stainless steel, Viton® M&C universal filters reliably separate solids, in particular extremely fine particles, occurring in analytical technology in gas filtration, using very fine, deep-acting filter elements. Thanks to their universal design, the filters can also be used as separators (without a filter element), liquid filters or, with adsorption cartridges, as an adsorption filters. For ambient or medium temperatures of up to 180 °C, a stainless steel version FSS or the FT-H version can be offered. Universal filter type FSS‑20K, completely out of stainless steel 316 Ti with in‑depth ceramic filter element, filter porosity: 20 µm, connection: G 1/4" female, material: stainless steel 316 Ti, Viton®, ceramic
