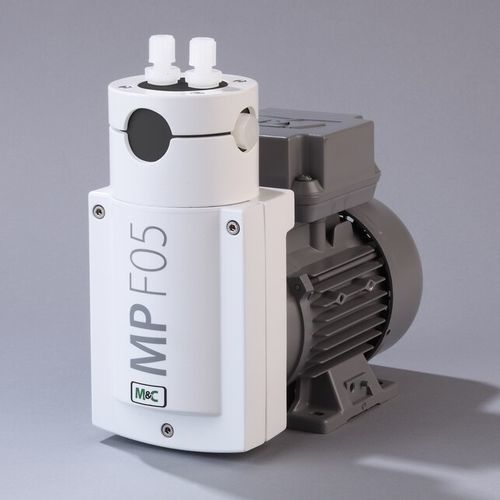

Bellows pump MP-F05for gaselectricstationary
Add to favorites
Compare this product
Characteristics
- Technology
- bellows
- Fluid
- for gas
- Operation
- electric
- Mobility
- stationary
- Domain
- industrial
- Material
- PTFE
- Voltage
- 230 V
- Protection level
- IP54
- Pressure
Max.: 2.5 bar
(36.259 psi)Min.: 0.4 bar
(5.802 psi)- Power
65 W
(0.09 hp)- Fluid temperature
Max.: 50 °C
(122 °F)Min.: -10 °C
(14 °F)
Description
-Full PTFE bellows pump
-Pump head can be rotated in 90° steps and connected to the gas line from the top or side
-Max. capacity: approx. 5 Nl/min with a counter-pressure of ±50 mbar on the vacuum and pressure side
-Max. operating pressure range: 0.4 to 2.5 bar abs.
-Corrosion-resistant
-100 % lubricant-free
-High level of gas tightness
-Long service life
-Power: 230 V
-Material of sample-contacting parts: PTFE, PFA, FEP
-Optionally: upper part of the pump head out of stainless steel
The bellows pumps type MP-F are suitable for corrosive gases. Their performance and construction are specially geared to meet the requirements of analytical technology.
Analytical bellows sample pump MP‑F05, material: PTFE, capacity: 320 Nl/h with counter‑pressure of ‑/+ 50 mbar on the vacuum and pressure side, connections: G 1/4" f, 230 V/230 V/50/60 Hz, IP54
