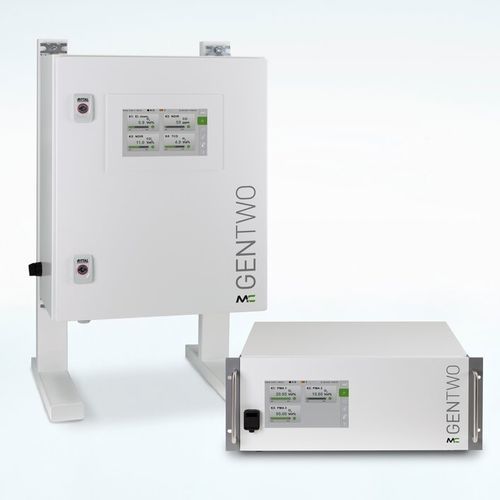

Multigas analyzer GenTwo

oxygenCOCH4

-Modular design for up to 6 different sensors -Resistive 7” color touch display -Multi-sensor enabled: Paramagnetic oxygen sensor (PMA2), ZrO2 oxygen sensor (in-situ), Electrochemical oxygen sensor, Electrochemical H2S sensor, Thermal conductivity detector (TCD), NDIR/NDUV/UVRAS photometers -Measured value storage over one year in the analyzer -Pressure compensation 0.8 to 1.2 bar abs. -Analog signal outputs 0–20/4–20 mA -Modbus and AK protocol TCP/IP -Ethernet/USB -User-programmable limit values -Remote operation via VNC viewer -Three different housings: 19“ rack housing short, 19“ rack housing long, Wall-mount housing The GenTwo® multigas analyzer for continuous measurement of gases in gas compounds offers two different sensor types for oxygen measurement depending on the requirements. They are based on the paramagnetic or electrochemical measuring principle. NDIR benches are used to measure infrared-active molecules such as CH4, CO, CO2, C3H8 und C6H14. Furthermore, NDUV photometers can be used for NO2, CL2, H2S, O3 and SO2 measurements in the ultraviolet spectral range in different cuvette designs. An UVRAS (Ultraviolet resonance absorption spectrometer) for NO and a TCD (thermal conductivity detector) for H2 measurement complete the range of sensors. Due to the modular design, we can specifically meet your requirements. For an inquiry, fill out our Multigas Analyzer Questionnaire - this will help us to better assess your requirements.
