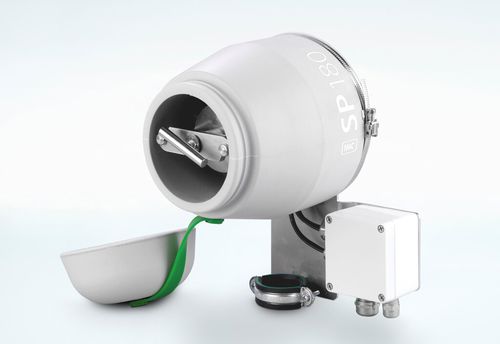

Gas sampling probe SP180-H-EX2-T3

indoor/outdoorheatedthreaded

Compact, heated gas sample probe for sampling from zones with explosive gas Approval according to ATEX for sampling from gas Ex zone 2 and temperature class T3 With innovative weather protection cover for outdoor mounting With test gas connection according to EN 14181 Self-regulating probe heating from 120 to 160 °C [248 to 320 °F] corresponding to temperature class T3 With low-temperature alarm contact: < 90 °C [194 °F], NO With compact ceramic filter element, other materials available Small dead volume and fast response time Easy installation and low maintenance Material of sample-contacting parts: stainless steel, FKM, ceramic heated, for sampling from Ex zone 2, with ceramic filter element outside, optionally: sample tubes and pre-filter or use in Ex zone 2 The M&C sample probes version SP180EX2 are used for continuous sampling of explosive gases (Ex zone 2) from dust-loaded, high-temperature and/or humid processes. The probes can be mounted in Ex zone 2. Gas sample probe type SP180‑H‑EX2 T3, ATEX‑certified version for installation in Ex zone 2 and sampling from zone 2 with the marking: Ex II 3G ec mc IIC T3 Gc EXAM BVS 16 ATEX E 039, external ceramic filter element type S‑2K (75 mm), filter porosity: 2 µm, electrical heating of the external filter to 155 °C with self‑regulating heating elements, low‑temperature alarm with potential‑free contact output at ‑25 °C below Tset, including innovative weather protection shield for outdoor use, power: 110 V‑240 V, 50/60 Hz, 400 W, mounting flange: DN 65 PN 6B with threaded connection G 3/4" f, material: SS 316Ti, SS 316L, Viton®,
