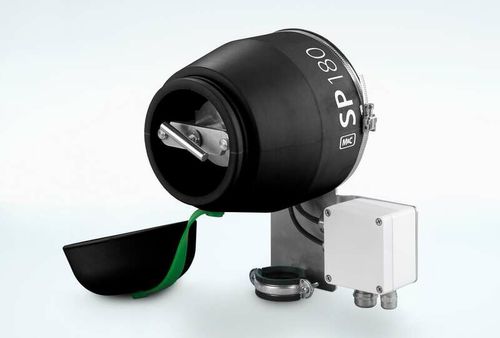

Gas sampling probe SP180-H-EX1-T3

outdoorheatedstainless steel

Compact, heated gas sample probe for sampling from zones with explosive gas Approval according to ATEX for sampling from gas Ex zone 1 and temperature class T3 With innovative weather protection cover for outdoor mounting With test gas connection according to EN14181 Self-regulating probe heating from 120 to 160 °C [248 to 320 °F] corresponding to temperatur class T3 With low temperature alarm contact: < 90 °C [194 °F], NO With compact ceramic filter element, other materials available Small dead volume and fast response time Easy installation and low maintenance Power: 110–240 V Material of sample-contacting parts: stainless steel, FKM, ceramic Optionally: sample tube, pre-filter The M&C sample probes version SP180EX1 are used for continuous sampling of explosive gases (Ex zone 1) from dust-loaded, high-temperature and/or humid processes. The probes can be mounted in Ex zone 1. Gas sample probe type SP180‑H EX1 T3, ATEX certified version for installation in Ex zone 1 and sampling from zone 1 with the marking: Ex II 2G eb mb IIC T3 Gb EXAM BVS 18 ATEX E 043. IECEx BVS 18.0034., external ceramic filter element type S‑2K (75 mm), filter porosity: 2 µm, external filter electrically heated to 155 °C with self‑regulating heating elements, low‑temperature alarm with potential‑free contact output at ‑50 °C below Tset, including weather protection shield for outdoor use, power: 110 V‑240 V, 50/60 Hz, 400 W, mounting flange: DN 65 PN 6B with connection thread G 3/4" f, material: SS 316 Ti, SS 316 L, Viton®, ceramic, connection: sample gas outlet: tube screw fitting DN 4/6, calibration gas connection: tube screw fitting DN 4/6 with blind cap
