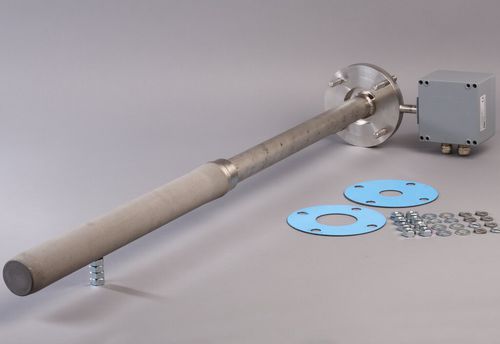

Gas sampler SP30-H1.1V

sampling tubestainless steelheated

Completely heated double-jacket tube with pre-filter made of stainless steel Pre-filter is heated by the sample tube Sample tube with mounting flange including 4 welded-in threaded bolts Total length: 1 m [≈ 3.3 ft] w/o mounting flange Sampling temperature: max. +550 °C [+1022 °F] Operating temperature of the heater: max. +320 °C [+608 °F] Temperature sensor: Fe‑CuNi Power: 230 V/115 V switchable Material of sample-contacting parts: stainless steel, Novapress® Optionally: external temperature controller Stainless steel, power: 230/115 V, 50/60 Hz, in different lengths, up to 200 °C resp. max. 550 °C process temperature, in order to avoid condensation between the sample point and probe head The electrically heated M&C sample probe tube SP30-H... is used in sampling systems to avoid cooling and condensation of the sample in the in-situ tube from the sample point to the heated sample probe SP2000-H. To avoid a premature damage by cooling and condensation in dust-loaded processes that tend to fall below the dew point in the sampling area during operation or when the plant is at a standstill, we recommend using the electrically heated tube type SP30-H1.1-V with the heated in-situ pre-filter V20-2/30. Heated sample tube SP30‑H1.1V with pre‑filter V20‑2/30 made of stainless steel 316Ti, electrical heating of the double jacket tube from 0 to 320 °C, thermocouple Fe‑CuNi, mounting flange DN 65 PN B, including 4 welded‑in threaded bolts, flange seal and fastening nuts, length: 1 m, operating temperature: max. 550 °C, material: SS 1.4571, power: 115 V/230 V, 50/60 Hz, capacity: 800 W, external temperature controller not included in the standard scope of delivery
