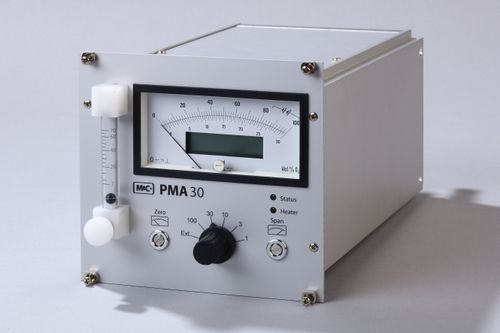

Oxygen analyzer PMA30

gasmonitoringlaboratory

- Heated O2 analyzer in compact housing - Housing takes up 1/3 of a 19" rack (28 HP) - SIL certification according to DIN EN 61508 - Paramagnetic measuring principle - Remote measuring range control and indication - Flow alarm sensor downstream of the measuring cell - Analog and digital display - mA output: 4 to 20 mA - Small stagnant space, fast response time - Power: 230 V Due to the extremely fast response time of the patented M&C magneto-dynamic measuring cell without dead space as well as the negligible cross-sensitivity towards other sample gas components, the portable M&C oxygen analyzer PMA30 has a wide variety of applications. The analyzer is a suitable and reliable instrument for measuring oxygen concentrations in various gas analytical control applications including flue gas monitoring, inertization plants, fermentation processes as well as process or laboratory control measurements. Oxygen analyzer type PMA30A/D with combined analog/digital display in 1/3 of a 19"plug‑in rack (3 U, 28 HP), signal output: 4 to 20 mA (0 to 20mA on request) with galvanic isolation max. load of 300 Ohm (900 Ohm on request), measuring ranges: from 0 to 1/3/10/30/100 vol% O2, can be pre‑selected at the analyzer or externally, incl. flow meter with needle valve 7 to 70 Nl/h, status signal output for heating, fuse, projection LED and flow, thermostatization of the transmitter to +50 °C, power: 230 V/50 Hz
