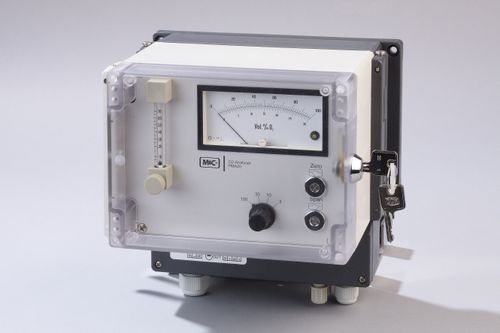

Gas analyzer PMA20

oxygenmonitoringlaboratory

- Heated oxygen analyzer in a compact wall-mounting housing - Paramagnetic measuring principle - With analog display, combined analog/digital display optional - mA output: 4 to 20 mA - Small dead volume, fast response time - Long service life - Power: 230 V Due to the extremely fast response time of the patented M&C magneto-dynamic measuring cell without dead space as well as the negligible cross sensitivity from other sample gas components, the M&C oxygen analyzer PMA20 has a wide variety of applications. The analyzer is a suitable and reliable instrument for measuring oxygen concentrations in various gas analytical control applications including flue gas monitoring, inertization plants, ambient air monitoring, fermentation processes as well as laboratory control measurements. Stationary oxygen analyzer type PMA20 with analog display in a plastic housing for wall‑mounting, signal output: 4‑20 mA (0‑20 mA on request), measuring ranges: 0‑3/10/30/100 vol% O\fs12 2 , incl. flow meter with needle valve 7‑70 Nl/h, transmitter thermostatically regulated to +50 °C, power: 230 V/50 Hz
