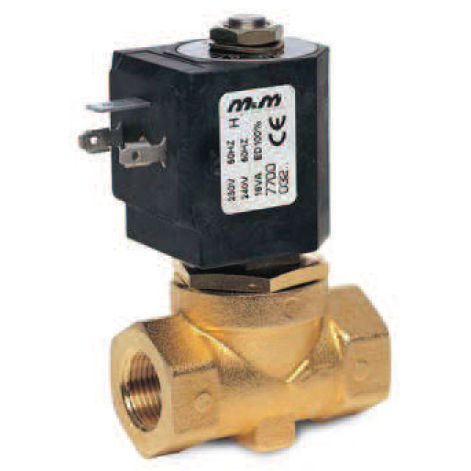

Pilot-operated solenoid valve D884, D8862-wayNCair
Add to favorites
Compare this product
Characteristics
- Control
- pilot-operated
- Ports/positions
- 2-way
- Function
- NC
- Medium
- air, for water, oil
- Other characteristics
- membrane
- DN
Max.: 0.5 in
Min.: 0.25 in
- Voltage
Max.: 240 V
Min.: 24 V
- Temperature
Max.: 130 °C
(266 °F)Min.: -10 °C
(14 °F)
Description
TECHNICAL SPECIFICATIONS
Media: water, oil, air
Media temperature: -10°C ÷ +90°C
Ambient temperature: -10°C ÷ +50°C
Body material: brass (CW617N EN 12165)
Operator material: stainless steel
Operator seal material: FKM
Seal and diaphragm material: FKM
Coil power: AC 18VA (holding)
AC 36VA (inrush)
DC 14W
Protection class: IP 65 (with connector)
