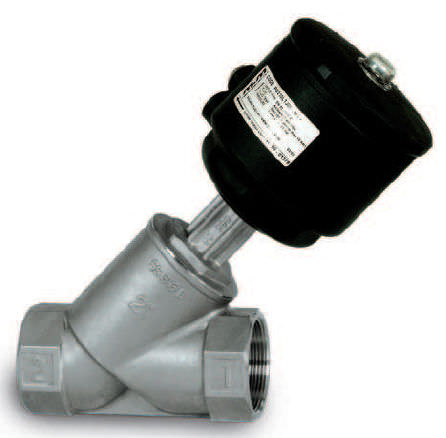

Piston valve BPG208L-210L-HTpneumatically-operated2/2-waynormally closed
Add to favorites
Compare this product
Characteristics
- Type
- piston
- Operation
- pneumatically-operated
- Number of channels
- 2/2-way
- Other characteristics
- normally closed, for aggressive media
- DN
Min.: 0.5 in
Max.: 2 in
- Temperature
Min.: -10 °C
(14 °F)Max.: 196 °C
(385 °F)
Description
Media: water, oil, air, aggressive media and steam MAX 196°C(1)
Media temperature: -10°C … +196°C
Ambient temperature: -10°C … +60°C
Pilot media: air, inert gases
Body material: AISI 316L (ASME SA351/351M GRADE CF3M)
Bonnet material: AISI 316L (ASME SA351/351M GRADE CF3M)
Actuator body material: Polyamide PA6 (reinforced fibreglass 30%)
Seal material: PTFE
Position indicator as standard
Valves DN32÷DN50 complying with 97/23/EC Directive Category
