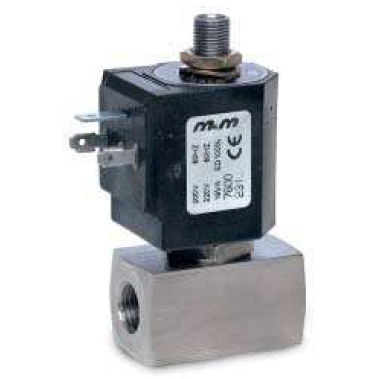

Direct-operated solenoid valve D398, D3993-wayNCIP65
Add to favorites
Compare this product
Characteristics
- Control
- direct-operated
- Ports/positions
- 3-way
- Function
- NC
- Body
- IP65
- DN
Max.: 0.25 in
Min.: 0.125 in
- Temperature
Max.: 130 °C
(266 °F)Min.: -10 °C
(14 °F)- Pressure
18 bar
(261.1 psi)
Description
Media: aggressive fluids
Media temperature: -10°C ÷ +130°C
Ambient temperature: -10°C ÷ +50°C
Body material: stainless steel (AISI 303 EN 10088-3)
Orifice material: stainless steel (AISI 303 EN 10088-3)
Operator material: stainless steel
Seal material: FKM
Coil power: AC 18VA (holding)
AC 36VA (inrush)
DC 14W
Protection class: IP 65 (with connector)
