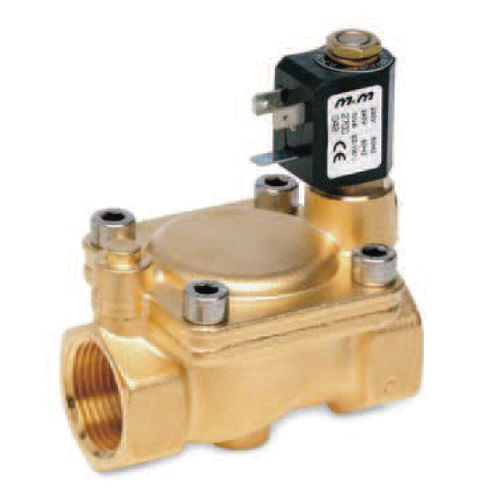

Pilot-operated solenoid valve B203, B222 2-wayNCfor water
Add to favorites
Compare this product
Characteristics
- Control
- pilot-operated
- Ports/positions
- 2-way
- Function
- NC
- Medium
- for water, air, oil
- Body
- IP65
- Other characteristics
- membrane
- DN
Min.: 0.25 in
Max.: 1 in
- Temperature
Min.: -10 °C
(14 °F)Max.: 90 °C
(194 °F)
Description
Media: water, oil, air
Media temperature: -10°C ÷ +90°C
Ambient temperature: -10°C ÷ +50°C
Body material: brass (CW617N EN 12165)
Operator material: stainless steel
Operator seal material: NBR
Seal and diaphragm material: NBR
Coil power: AC 10VA (holding)
AC 16VA (inrush)
DC 7W
Protection class: IP 65 (with connector)
