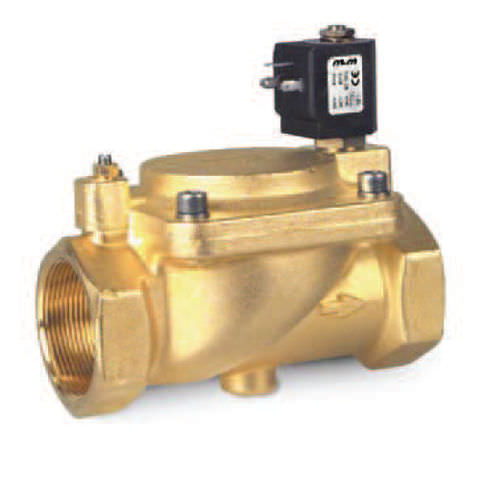

Pilot-operated solenoid valve D223, D225 2-wayNCfor water
Add to favorites
Compare this product
Characteristics
- Control
- pilot-operated
- Ports/positions
- 2-way
- Function
- NC
- Medium
- for water, air, oil
- Other characteristics
- membrane
- DN
Max.: 2 in
Min.: 1.25 in
- Temperature
Max.: 90 °C
(194 °F)Min.: -10 °C
(14 °F)- Pressure
16 bar
(232.1 psi)
Description
Media: water, oil, air
Media temperature: -10°C ÷ +90°C
Ambient temperature: -10°C ÷ +50°C
Body material: brass (CW617N EN 12165)
Operator material: stainless steel
Operator seal material: NBR
Seal and diaphragm material: NBR
Coil power: AC 18VA (holding)
AC 36VA (inrush)
DC 14W
Protection class: IP 65 (with connector)
Speed control screw as standard
