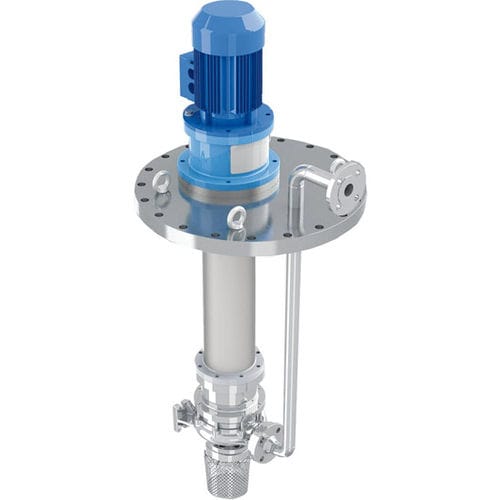

Centrifugal pump CNV MAG-M

waterfor chemicalselectric

Vertical construction adopts V1 IEC motor standard. Base flange designed on customer specification. Field of application CNV MAG-M pumps range meets the requirements on custom-built solutions in the process industry, in the following areas: Chemical and pharmaceutical, transfer of aggressive, highly corrosive liquids, paper, food processing, plant engineering and construction. For all industries that choose a pumping leak-free and low maintenance for use continuous (abandon of mechanical seal pumps) Design features Pumps of the series CNV MAG-M are vertical single-stage volute casing pumps with closed impeller. Close coupled pumps are furnished with standard motors. Leak-free back pull-out assemblies with magnetic drive meet the requirements with regard to job safety, operational reliability and environmental protection. Simplicity constructive and best value for money is the features of the range. The program comprises 5 sizes, to cover a wide range of applications. Materials Magnetic drive rear casing standard materials are PP glass fiber, or PVDF carbon fiber, other materials, available on request. The rear shell is made of one single piece, no welding, ellipsoidal profile that has been studied to withstand higher pressures than the traditional one.
