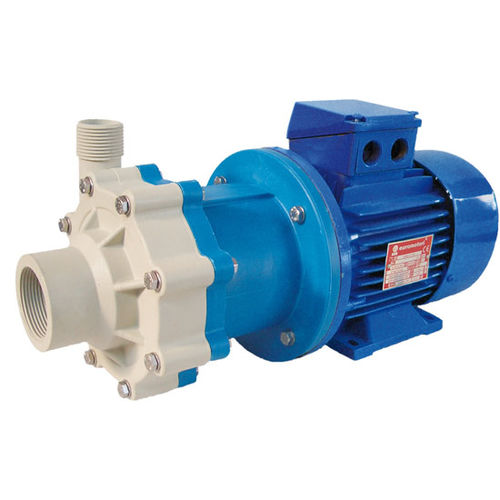

Centrifugal pump CM MAG-P series

waterelectricstationary

Close-coupled drivers are conventional drivers mounted directly to pumps frame. No base, coupling or guards are required for this mounting style. Horizontal, sealless PP and PVDF centrifugal pump with permanent magnet drive system, no mechanical seal. Field of application CM MAG-P pumps range meets the requirements on custom-built solutions in the process industry, in the following areas: Chemical and pharmaceutical, transfer of aggressive,highly corrosive liquids, paper, food processing, plant engineering and construction. For all industries that choose a pumping leak-free and low maintenance for use continuous (abandon of mechanical seal pumps) Design features Pumps of the series CM MAG-P are horizontal single- stage volute casing pumps with closed impeller. Close coupled pumps are furnished with standard motors. Leak-free back pull-out assemblies with magnetic drive meet the requirements with regard to job safety, operational reliability and environmental protection. Simplicity constructive and best value for money is the features of the range. The program comprises 5 sizes, to cover a wide range of applications.
