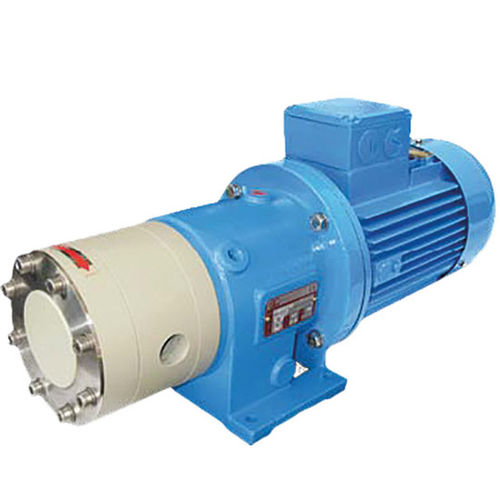

Vane pump VP

ammoniaCO2electric

Horizontal, sealless thermoplastic sliding vane pump with permanent magnet drive system, no mechanical seal. Close-coupled drivers are conventional drivers mounted directly to pumps frame. No base, coupling or guards are required for this mounting style. Field of application VP series pumps range meets the requirements on custom-built solutions in the process industry, in the following areas: Chemical and pharmaceutical, sampling systems of petrochemical, thermoregulation circuits, ammonia and CO2 cooling systems, transfer of aggressive, highly corrosive liquids, paper, food processing, plant engineering and construction. For all industries that choose a pumping leak-free and low maintenance for use continuous (abandon of mechanical seal pumps) Design features Pumps of the VP series are horizontal sliding vane, volumetric pumps. Close coupled pumps are furnished with standard motors. Leak-free back pull-out assemblies with magnetic drive meet the requirements with regard to job safety, operational reliability and environmental protection. The program comprises 14 sizes
