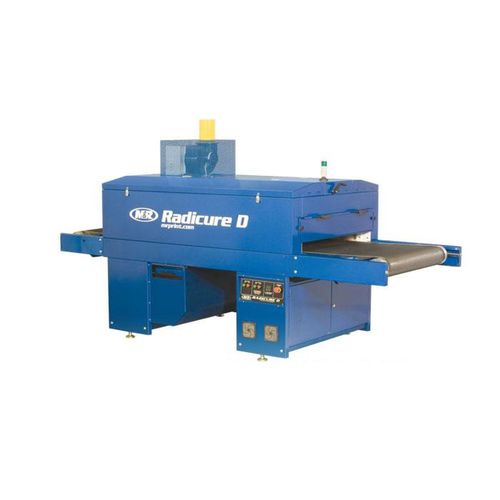

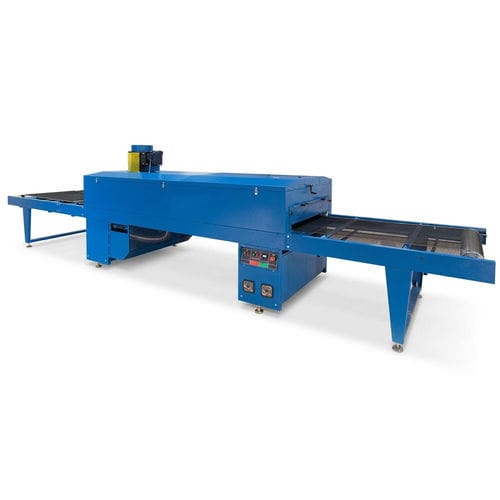

Dryer with belt conveyor RADICURE D™ series

hot aircontinuousfor the textile industry

Built for long life and maximum performance, Radicure D™ is M&R's premium infrared electric screen printing conveyor dryer. It's available in belt widths from 91 to 152 cm (36” to 60”). Not only does it have the highest production capacity in its class of conveyor dryers, it’s also the most energy efficient. Heavy-duty thermal insulation in M&R’s patented (U.S. Patent No. 6,161,304; UK Patent No. GB2357827B) suspended-fabric insulating system prevents heat from migrating into the workplace, and M&R’s CoolSkin™ technology leaves dryer skin cool to the touch. Radiant panels can be quickly and easily raised and lowered with convenient single-point height adjustment. Fast cure rates and high product throughput maximize conveyor dryer capacity and minimize per-unit cost. Curing is provided by an infrared radiant panel array and forced hot air. Separate dedicated blowers power circulation and exhaust. Radicure D’s Proportional Integral Differential (PID) control allows the dryer to power up gradually to avoid maximum amperage loads during initial warmup. PID control also helps maintain even temperatures during production by phasing on and off rather than using the full-load/no-load approach. The control panel allows easy monitoring and adjustment of operational status, temperature, and belt speed settings. Process temperatures and set temperatures are controlled digitally. PID control responds to ambient temperature changes by keeping dryer chamber heat within 1° of target temperature at the thermocouple.
