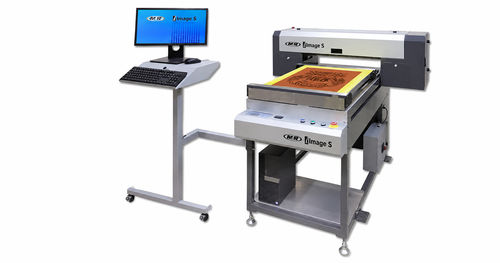

Imaging system i-Image S™

M&R’s i-Image S™ features the same software, printhead, output quality, and image area as the groundbreaking i-Image ST-36-1, but with a smaller footprint, exceptional pricing, and the ability to image up to 100 screens per shift, it’s the ideal choice for small-to-medium size print shops. i-Image S quickly generates opaque images up to 51 x 66 cm (20” x 26”) on screen frames up to 66 x 91 cm (26” x 36”). And it’s designed to fit through an 81 cm (32") doorway. i-Image S includes computer, monitor, and proprietary software that give operators complete control of print parameters, producing high-quality screen images at production-level speed. In order to ensure proper screen placement, M&R designed the Tri-Sync™ System. The system’s PRINT button illuminates when the contact indicators determine that the screen has been locked in place. That helps ensure that every CTS-generated screen is correctly pre-registered for M&R’s Tri-Loc registration system. In fact, the Tri-Sync System prevents images from being printed if the screen frame has not been properly loaded (this feature can be turned off). And every i-Image model also includes a Tri-Sync pallet. The pallet’s contact indicator lights up when the screen is properly positioned on the press, giving users the same confidence when registering screens on the press that they have when loading screens onto an i-Image unit. M&R’s Tri-Sync System virtually eliminates operator screen-loading errors on the i-Image or registration errors on the press.
