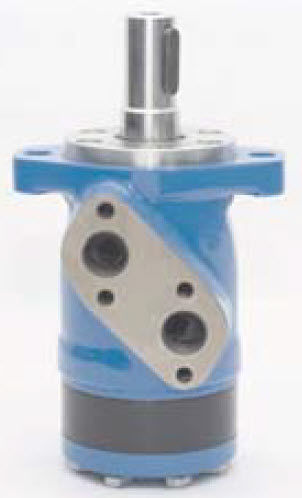

Gerotor hydraulic motor MP, MLHP series
Add to favorites
Compare this product
Characteristics
- Technology
- gerotor
- Pressure
Max.: 140 bar
(2,031 psi)Min.: 55 bar
(798 psi)- Rotational speed
Max.: 1,600 rpm
(10,053.1 rad.min-1)Min.: 95 rpm
(596.9 rad.min-1)- Torque
Max.: 440 Nm
(324.53 ft.lb)Min.: 33 Nm
(24.34 ft.lb)- Displacement
Max.: 623 cm³
(21.07 US fl oz)Min.: 16 cm³
(0.54 US fl oz)
Description
This Hydraulic motors type from MP series consists of a spool valve, the distribution which is incorporated in the motors'output shaft. The motor's physical composition includes the gerotor set, spool valve integrated with the output shaft supported in single bearings or needle bearings.
Additionally, the cardan shaft revolves the dispensation valve and automates energy from the gerotor set to the output shaft.
