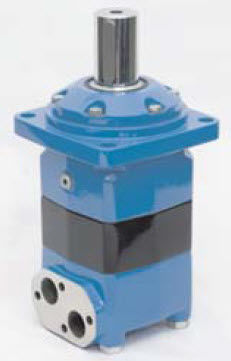

Gear hydraulic motor MV, MLHV series
Add to favorites
Compare this product
Characteristics
- Technology
- gear
- Pressure
Min.: 160 bar
(2,321 psi)Max.: 200 bar
(2,901 psi)- Rotational speed
Min.: 320 rpm
(2,010.62 rad.min-1)Max.: 510 rpm
(3,204.42 rad.min-1)- Torque
Min.: 920 Nm
(678.56 ft.lb)Max.: 1,880 Nm
(1,386.62 ft.lb)- Displacement
Min.: 311 cm³
(10.52 US fl oz)Max.: 787 cm³
(26.61 US fl oz)
Description
The M+S Hydraulic MV series offers a disc valve that comes with a separated distribution valve. Using a balance plate, the hydraulic forces around the distribution valve are equalized. This device is also equipped with flange and wheel mount, and the short motor. In addition, this device also contains a tacho connection and speec sensor connection. The manufacturer has fitted the device with side ports, shafts of various types, including splined, straight and tapered, as well as Metric and BSPP ports.
