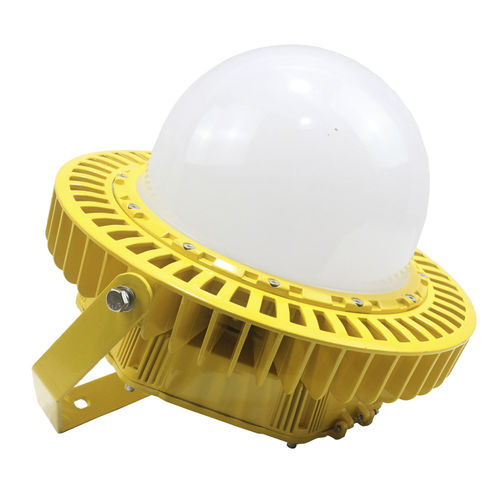

Light fixture MAXL-515F,520F,523FLEDfor storage halljob-site
Add to favorites
Compare this product
Characteristics
- Type
- light fixture
- Illumination technology
- LED
- Applications
- for storage hall, job-site, tunnel, for mining
- Protection level
- IP66
- Other characteristics
- wall-mounted, suspended, waterproof, for industrial applications, explosion-proof, for hazardous locations, aluminum, water-resistant, weather-resistant, fixed, vibration-resistant, chemically resistant, outdoor, maintenance-free, for extreme conditions, corrosion-resistant
- Power
150 W, 200 W, 230 W
Description
Super brightness led platform light.Use OSRAM LED Chip and Meanwell Driver;
Excellent anti-explosion,anti-corrosion and durability,safe use in all kinds of inflammable and explosive hazardous area,such as petrochemical plant,powder plant,gas equipments;
Aluminum Integratied lamp housing make chip connect with housing tightly,through cooling fins and special airflow structure,make excellent heat radiation;
Almost free maintenance required,IP66 water proof and dust proof,100000 hours lifespan;
Intelligent power regulator supplement luminous flux and reduce luminous decay,with protection of overvoltage,over current,and surge current;
Gas explosive environment : Group IIA, IIB, IIC;
Zone 1, Zone2; Zone 21, Zone 22;
Temperature class: T1 to T6;
ModelMAXL-515FMAXL-520FMAXL-523F
Light TypePlatform Light
VoltageAC220V / AC127V / DC24V / DC36V
Protection ClassExd II CT6 Gb,IP66
Insulation Degree:I,
Corrsion Resistant:WF2,
Lighting Power150W200W230W
Luminous Flux15000Lm20000Lm23000Lm
View Angle60°,90°,110°,120°
Life Span100000 Hours
CableD8-12mm
MaterialLampshade:Explosion Proof Tempered Glass;
Housing:DIECAST Al;
Operation Temp-40 – 70℃
Install WayBracket / Ceiling / Hanging / Wall Mounted
Weight10.2Kg
MeasurementD420*360mm
