- Hydraulics - Pneumatics
- Pump
- External-gear pump
- Maag Germany GmbH
Magnetic-drive pump mag driveexternal-gearacidcondensate
Add to favorites
Compare this product
Characteristics
- Technology
- external-gear
- Fluid
- acid, condensate, for solvents, for coolant, oil
- Operation
- magnetic-drive
- Priming
- self-priming
- Mobility
- stationary, mobile
- Domain
- industrial, for the chemical industry, for the pharmaceutical industry
- Applications
- transfer
- Protection level
- ATEX
- Other characteristics
- flange-mounted, hermetically-sealed
- Flow
Max.: 264 l/min
(69.74142 us gal/min)Min.: 0.48 l/min
(0.1268 us gal/min)- Pressure
25 bar, 100 bar
(362.594 psi, 1,450.377 psi)- Fluid temperature
Max.: 300 °C
(572 °F)Min.: -30 °C
(-22 °F)
Description

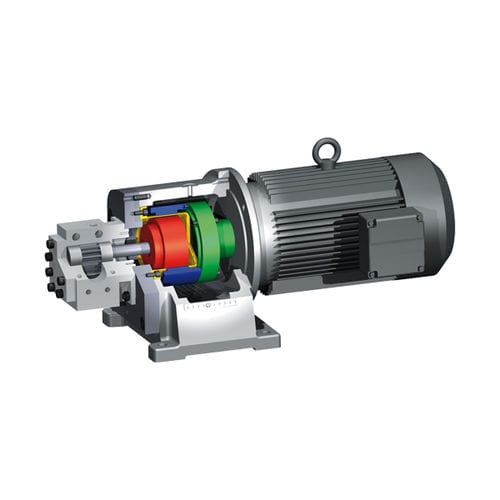

Magnetic coupling for chemical and industrial processes
Magnetic drives are hermetically sealed, thereby guaranteeing that environmentally hazardous, poisonous, and malodorous substances are pumped safely. The product chamber in the gear pump is completely separated from the environment by a containment shell. The torque is transferred from motor shaft to pump shaft without contact by means of heavy-duty permanent magnets. This design makes the magnetic couplings extremely safe and virtually maintenance-free for the industrial application.
