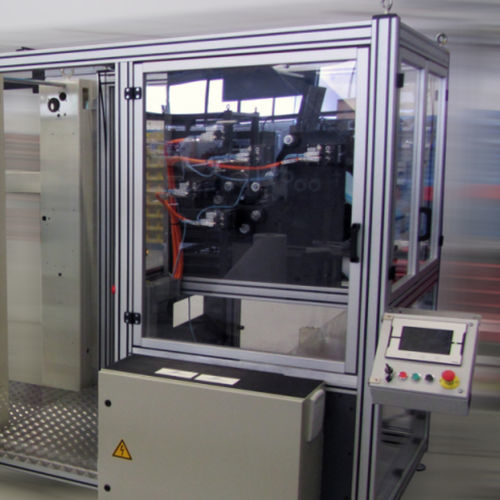

Fabric folding machine MD1

automaticcutting

Automatic folding of nonwoven drapes through following operations: – Unwinding of the nonwoven fabric, – Lengthwise folding (2 possible types), – Detachment of the folded length by means of a rotary cutting, – Folding of the finished drape (3 possible types), – Output of the finished product on an out-feed table. The process is continuous. It includes the automatic control of the product parameters, and allows the storage of product recipes corresponding to drape formats to produce. Unwinding - Max width: 1800 mm Max diameter: 1000 mm Core diameter: 3“ Cutting - Cutting accuracy: ± 10 mm Product feature - Maximum size of the unfolded drape: 2,75 m x 1,80 m Minimum size of the unfolded drape: 0,57 m x 1,80 m Production - Length 2.75 m: 22 drapes per minute or 1,320 drapes per hour Length 0.57 m: 105 drapes per minute or 6,300 drapes per hour Line speed - 60 meters per minute Overall machine dimensions - Dimensions (in m.): 5,50 x 3,00 x 2,20 (L x w x h)
