Reading bridge for QR codes and data matrix codes on tires

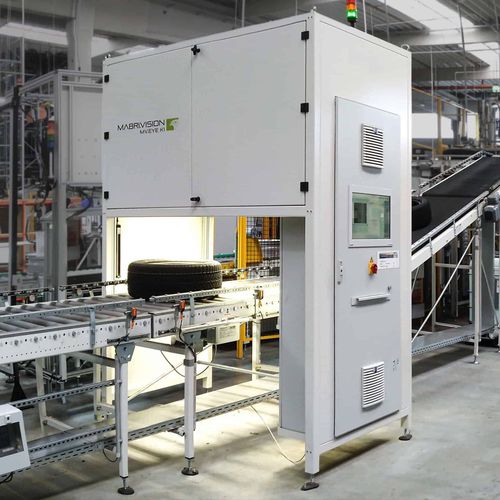

The MV.EYE K1 reading bridge from MABRI.VISION was developed for the rapid detection and reading of 2D codes on tires. Molded or lasered codes such as data matrix and QR codes are read without stopping during the conveyance with a best-in-class reading rate of> 99.8%. The area of application is in the production, assembly and storage of car and truck tires.
easy integration
The reading bridge can be easily integrated into existing production processes. The integration takes place via standard interfaces.
always sharp
The MABRI.VISION inspection system MV.EYE K1 is equipped with a high-speed focus system that guarantees high reading rates for different tire widths.
high speed camera
The high-speed camera system enables the 2D codes to be read and evaluated at conveyor speeds of up to 1 m / s.
scalable structure
The reading bridge can be adapted to the size of your application. The integration takes place via standard interfaces.
smart interface
Benefit from a large display for visualizing and analyzing the inspections. Interfaces to your systems can be expanded as required (Profinet, Profibus, digital I / O).
databases
All inspected codes as well as code quality and reading rates can be recorded in databases.
