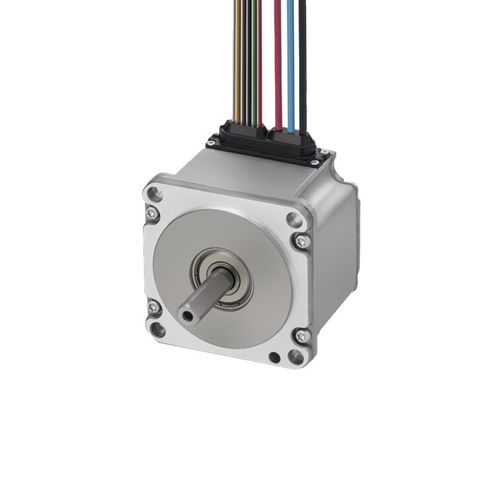

DC motor IS-74BZA

brushlesswaterproofsmall

Smaller and lighter than typical conventional motors for AMRs and AGVs. Maximum efficiency of 90% achieved. 1. Waterproof guarantee (conforms to IPX4) • IPX4 waterproof guarantee is realized by adopting a highly airtight waterproof structure around the cables and connectors while maintaining the same motor characteristics as the conventional IS series 2. Optional items • Reducer: Planetary reduction mechanism suitable for high torque requirement, and can directly hold the radial load applied to the reducer • Controller: Optimized design for IS and MS motor series. Compact, low electrical noise and waterproof to maximize the characteristics of the brushless motor series. • Drive unit: Wheel, bracket, electromagnetic brake, can be selected Brushless motors for small personal mobilities Suitable for a wide range of applications, such as autonomous robots (AGV / AMR, etc.), personal mobilities, and power assist robots. We have three products: the IS-94BZC with a rated output of 380W, the IS-74BZA at 200W, and the IS-B5BZA at 750W. All are IPX4 rated. Size : 60.0 mm x 60.0 mm x length: 44.5 mm Weight :520g Withstand Voltage :500 V AC 1 minute (between terminal and case) Insulation Resistance :10 MΩ (min.) (500 V DC)
