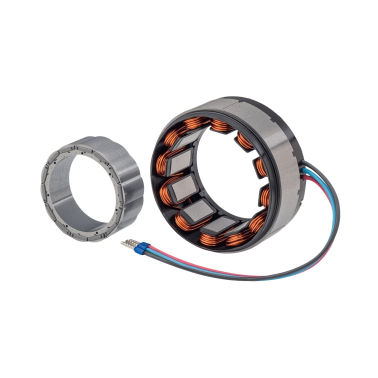

Frameless motor IA-C5BZA / IB-C5BZA

DCbrushless

These are hollow frameless motors with low cogging design consisting of a stator and rotor, designed for use in collaborative robots and products with built-in structures. The lineup includes four different sizes with different outputs, which can be used in a wide range of applications by selecting a product suitable for the structure and size of the customer's product. Wide range of applications The frameless structure and four sizes allow a high degree of freedom in design to match the shape, structure, size, etc. of the customer's product, making it suitable for a wide range of applications. Smaller and lighter products Can be built in as is. This leads to further downsizing and weight reduction of your products. Energy-saving design Highly efficient magnetic circuit design that saves energy with less energy loss even when used for long periods of time. Smooth movement Low cogging design contributes to smooth robot motion. Rated Voltage - 48V Operating Voltage - 15-55V Stator Length - 39.65mm - Rotor length - 22.9mm Weight - 600g Withstand Voltage - 500 V AC 1 minute (between lead wire and laminate core) Insulation Resistance - 10 MΩ (min.) (500V DC)
