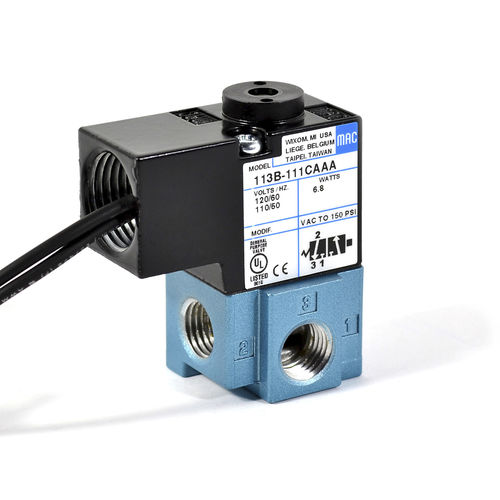

Poppet pneumatic directional control valve 100 series
solenoid-operateddirect-operated3/2-way

poppet pneumatic directional control valve
poppet pneumatic directional control valve
Add to favorites
Compare this product


Characteristics

Type
poppet
Actuating method
solenoid-operated, direct-operated
Ports/positions
3/2-way
Other characteristics
spring-return, normally closed, normally open, miniature
Operating pressure

150 psi

Description

The MAC 100 Series is a direct solenoid operated 3-way poppet valve. It features a short stroke solenoid, a balanced poppet and powerful return spring. These features translate into high shifting forces, fast consistent response times, and long life. Our unique balanced design means versatility in piping – the valve can be configured as a 3-way or 2-way – normally closed or normally open or can be used for vacuum, diverter, or selector applications.
