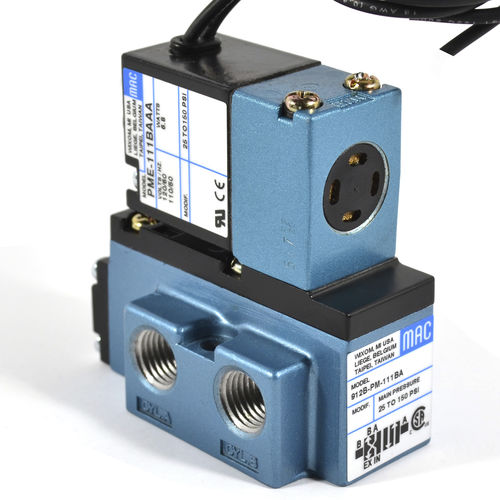

Spool pneumatic directional control valve 900 seriessolenoid-operatedpilot-operated4/2-way
Add to favorites
Compare this product
Characteristics
- Type
- spool
- Actuating method
- solenoid-operated, pilot-operated
- Ports/positions
- 4/2-way
- Other characteristics
- spring-return, normally closed, normally open, miniature
- Operating pressure
Max.: 150 psi
Min.: 10 psi
Description
The MAC 900 Series is a versatile 4-way solenoid piloted spool valve. This series features our balanced poppet in the pilot and an air/spring return for consistent shifting regardless of inlet pressure fluctuations. Versatility in piping means the valve can be piped as a 4-way, 3-way, 2-way, normally closed or normally open or can be used for vacuum, diverter or selector applications. Our one piece bonded seal spool means longer life and easy maintenance.
