Spool pneumatic directional control valve 42 Seriessolenoid-operatedpilot-operated5/2-way
Add to favorites
Compare this product
Characteristics
- Type
- spool
- Actuating method
- solenoid-operated, pilot-operated
- Ports/positions
- 5/2-way, 5/3-way
- Other characteristics
- for high flow rates, miniature
- Operating pressure
Max.: 120 psi
Min.: 20 psi
Description

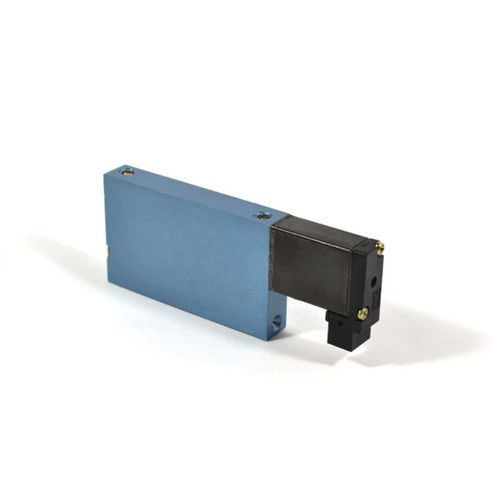

The MAC 42 Series is a high flow 10mm solenoid pilot operated spool valve with a unique integral four way pilot. The short stroke solenoid utilizes an oval armature for maximized shifting forces in a small area. The 4-way pilot means a low minimum operating pressure – no pistons – and minimal resistance to shifting. The balaced design in the pilot means shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations.
