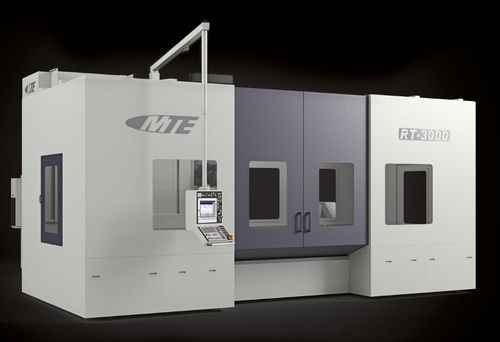

3-axis CNC milling machine RT series

universalwith rotary table3-spindle

THE RT SERIES MILLING MACHINE UNITES ALL THE ADVANTAGES OF A TRADITIONAL TABLE TYPE BORING MILL WITH THOSE OF A MILLING MACHINE. The combination of a highly stable built-in NC rotary table with an automatically swivelling milling head makes it possible, in addition to regular drill centre machining operations, to make complex workpieces with five sides and all conceivable angle positions in a single set-up with up to 5 processing axes. STANDARD EQUIPMENT FOR RT MODEL BED TYPE MILLING MACHINES. Three ranges cooled gearbox INA linear guiding system Manual cooled milling head 4.000 rpm (MFK) Heidenhain CNC iTNC 530 HSCi / TNC 640 Heidenhain direct linear scales Electronic handwheel Integrated security system (PILZ) CNC movable panel front-back side of machine Automatic lubrication system Standard enclosure External coolant equipment Electrical cabinet cooling unit Hydraulic counterbalance system Foot pedal Working light Levelling element OPTIONAL EQUIPMENT FOR RT MODEL Manual cooled milling head 6.000 rpm (MFK) Automatic cooled milling head 4.000/6.000 rpm 2,5°x2,5° (AFK) Automatic cooled milling head 4.000/6.000 rpm 2,5°x1° (AFK) Automatic cooled stepless milling head 4.000/6.000 rpm 0,001°x0,001° (SFK)1 Direct cooled spindle 4.000 rpm (HFK) Different CNC available: Siemens, Fanuc and Fagor. 19 inches CNC screen Wireless handwheel Pressurized linear scales Teleservice Random vertical tool changer 24 tools Chain type horizontal / vertical tool changer. Number of tools: 40, 60, 80……
