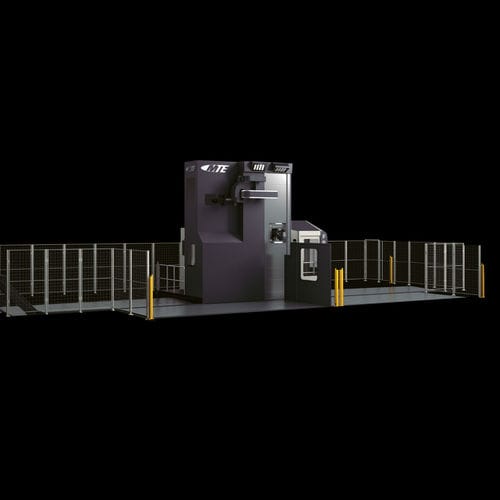

Floor type CNC milling machine FBF-M series

3-axisvertical3-spindle

THE FBF-M SERIES WITH ITS EXTREMELY STABLE DESIGN IS PREDOMINANTLY USED FOR MECHANICAL ENGINEERING APPLICATIONS. The series has fully automatic head changing systems with up to 4 different milling heads, rotary and traveling tables and tool changers, as well as optional shuttle machining, offering practical and maximum flexibility in the high-precision processing of extremely complex workpieces. They are used also for the processing of medium-sized and heavy workpieces with a vertical travel of up to 3,000 mm. In some cases the machine is even used to process complex large tool moulds in high strength-to-density ratio materials. STANDARD EQUIPMENT FOR FBF-M MODEL FLOOR TYPE MILLING MACHINES. Three ranges cooled gearbox INA linear guiding system Manual cooled milling head 4.000 rpm (MFK) Heidenhain CNC TNC 640 Heidenhain direct pressurized linear scales Electronic handwheel Integrated security system (PILZ) Operator cabine with CNC control panel Perimetral closing according to CE standard Automatic lubrication system External coolant equipment Electrical cabinet cooling unit Hydraulic counterbalance system Working lights Levelling elements Air, power and ethernet connectors inside the cabin OPTIONAL EQUIPMENT FOR FBF-M MODEL Manual cooled milling head 6.000 rpm (MFK) Automatic cooled milling head 4.000/6.000 rpm 2,5°x2,5° (AFK) Automatic cooled milling head 4.000/6.000 rpm 2,5°x1° (AFK) Automatic cooled stepless milling head 4.000/6.000 rpm 0,001° x 0,001° (SFK) Direct spindle 4.000 rpm (HFK) Different CNC available: Siemens, Fanuc and Fagor 19 inches CNC screen Second control panel Wireless handwheel
