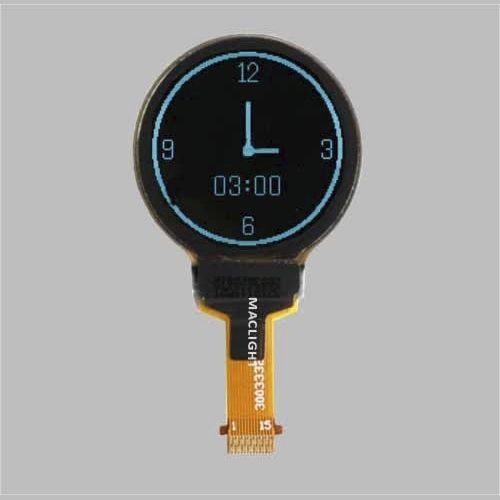

TFT LCD display module MLD075-128128A
OLEDcolormonochrome

TFT LCD display module
TFT LCD display module
TFT LCD display module
Add to favorites
Compare this product


Characteristics

Screen type
TFT LCD, OLED
Type
color, monochrome, graphic
Format
128 x 128
Screen size
0.75"
Applications
industrial
Structure
round
Configuration/mounting
portable, outdoor
Other characteristics
smart
Width

23.15 mm
(0.9114 in)

Height

25.93 mm
(1.0209 in)

Description

Graphic OLED 0.75 inch is a monochrome graphic round oled display, 128x128 pixels oled glass display. The 0.75 inch round oled module, is a graphic passive matrix oled display, with FPC connection, it is a COG structure OLED display, it have 128x128 dots, white color available, wide viewing angle, wide temperature, high brightness, high contrast, fast response time. Round oled display module graphic-0.75 inch oled: because it is OLED display module, oled could be emitting light by itself, no need for backlight, so oled display module would be thinner than tft lcd module, and it don't like tft lcd, oled display have no viewing angle limited, OLED display is wide/full viewing angle, oled display have excellent display performance in all viewing angle. 0.75’’ round OLED display module could be displayed in wide temperature, its working temperature could be reached to -40 degree, and 80 degree. Round 0.75 inch graphic mono OLED display module is the best display solution in the outdoor display, such as sunlight environment, and also for industrial or medical application that need the wide viewing angle and high brightness display. And it’s often used for smart watch, MP3, function cellphone, portable health device and many others application

Catalogs

No catalogs are available for this product.

See all of Maclight Display Co., Limited‘s catalogs
