TFT LCD display module

colorbar graph480 x 272

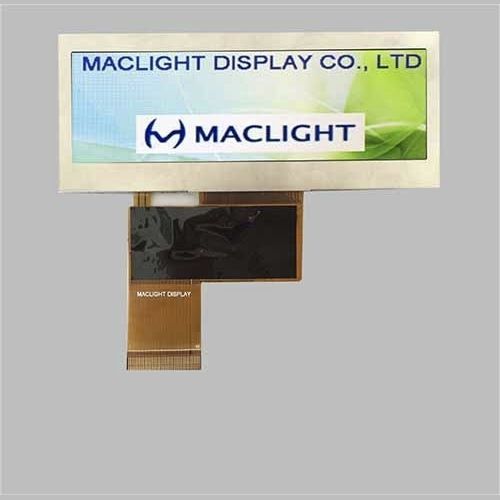

This 3.9" bar lcd is stretech tft lcd, it is stretech tft lcd, resized from 4.3" tft lcd 480x272 resolution, it is 480RGBx128 pixels after cut. interface is same as 4.3" tft with 40 pins RGB interface. ILI6480 ic driver, it is composed of a TFT-LCD panel, driver IC, FPC, a backlight unit. The 3.9’’ bar lcd display MLT039W-S2 is often used for server system, audio system and advertising display or equipment which requires bar type display in high quality, high brightness application. capacitive touch is optional. Because it is cutting bar tft lcd, it is suitable for the indoor application that no need a hard temperature cycle application. 3.9" color bar lcd demo kits is also available.
