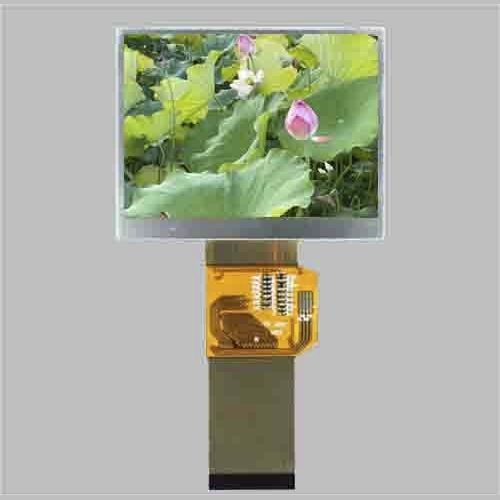

TFT LCD display module MLT035Q50-3

capacitive touch screen320 x 2403.5"

This is 3.5" tft lcd, 320x240 pixels landscale type, 8 bit or 16 bits MCU interface, instead of RGB interface, by using the 8 bit or 16 bits MCU interface, it could save the driver board's ports and cost. ST7796 IC driver, long term supply. it is composed of a TFT-LCD panel, driver IC, FPC, and backlight unit, resistive touch (RTP) and capacitive touch (PCAP or CTP) is optional for difference application. 12 O'clock viewing angle, 2x3 white LED backlight, 350 nits brightness. The 3.5 inch MCU tft module can be drived via 8 bit or 16 bits parallel interface. the interface could be selected by software setting, long FPC unit could be connected to the MCU board via 50 pins connector. Small MOQ is acceptable for this 3.5" MCU TFT lcd.
