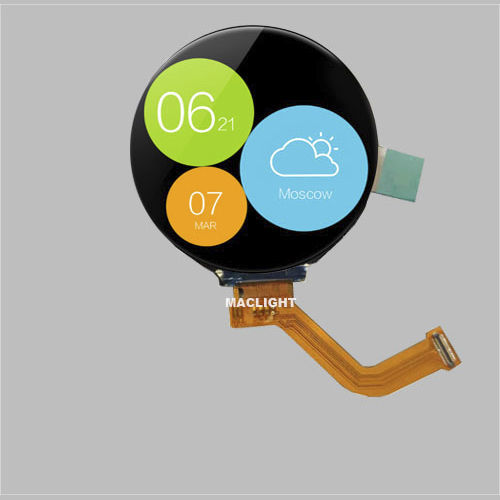

TFT LCD display module MLT016R24-2IPScolor400 x 400
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT LCD, IPS
- Type
- color
- Format
- 400 x 400
- Screen size
- 1.6"
- Applications
- industrial, for medical equipment, for control panels, for remote control, power
- Interface
- RGB, MIPI, UART
- Structure
- round
- Other characteristics
- cost-effective, LED-backlit, custom
- Width
42.94 mm
(1.6906 in)- Height
45.89 mm
(1.8067 in)- Thickness
1.5 mm
(0.059 in)
Description
TFT LCD display 1.6 inch is a color round tft lcd display panel which is made with 400RGBx400 resolution. Each pixel is divided into Red, Green and Blue sub-pixels and dots, which are arranged in vertical stripes. This small tft display is only 1.6" in diagonal, packed with RGB pixels, for making very small high-density displays.
The sunlight readable 1.6’’ tft lcd panel MLT016R24-2 is composed of a TFT-LCD panel, driver IC, FPC, a backlight unit.
This 1.6 round tft lcd screen is with full viewing angel display, and built in with ST7797 controller IC, it supports MIPI interface.
It could be customized made with UART interface, and custom GUI for rotary knob, and other industrial application.
