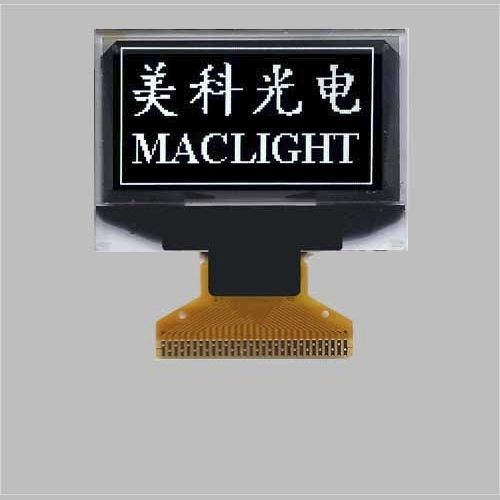

TFT LCD display module MLD130-12864
OLEDmonochromegraphic

TFT LCD display module - MLD130-12864 - Maclight Display Co., Limited - OLED / monochrome / graphic
TFT LCD display module - MLD130-12864 - Maclight Display Co., Limited - OLED / monochrome / graphic
Add to favorites
Compare this product


Characteristics

Screen type
TFT LCD, OLED
Type
monochrome, graphic
Format
128 x 64
Screen size
1.3"
Applications
industrial
Interface
SPI, I2C
Configuration/mounting
portable, outdoor
Other characteristics
smart
Width

34.5 mm
(1.3583 in)

Height

23 mm
(0.9055 in)

Description

The 1.3 inch mono oled display, is a graphic passive matrix oled display, it have 128x64 dots, wide viewing angle, wide temperature, high brightness, high contrast, fast response time. OLED display module screen-1.3 inch mono graphic oled screen: because it is OLED display module, oled could be emitting light by itself, no need for backlight, so oled display module would be thinner than tft lcd module, and it don't like tft lcd, oled display have no viewing angle limited, OLED display is wide/full viewing angle, oled display have excellent display performance in all viewing angle. 1.3’’ 128x64 OLED lcd display module could be displayed in wide temperature, its working temperature could be reached to -40 degree, and 80 degree. Mono 1.3 inch OLED screen 128x64 dots is the best display solution in the outdoor display, such as sunlight environment, and also for industrial or medical application that need the wide viewing angle and high brightness display. And it’s often used for smart watch, MP3, function cellphone, portable health device and many others application.
