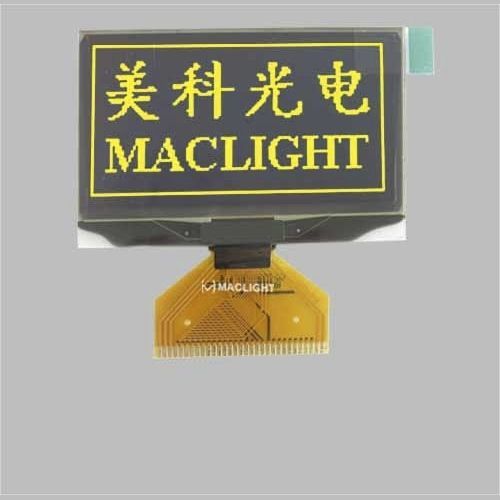

LCD display module MLD242-12864
OLEDmonochromegraphic

LCD display module - MLD242-12864 - Maclight Display Co., Limited - OLED / monochrome / graphic
LCD display module - MLD242-12864 - Maclight Display Co., Limited - OLED / monochrome / graphic
Add to favorites
Compare this product


Characteristics

Screen type
LCD, OLED
Type
monochrome, graphic
Format
128 x 64
Screen size
2.42"
Applications
industrial
Interface
SPI, I2C
Configuration/mounting
outdoor
Other characteristics
wide-viewing angle, high-brightness
Width

60.5 mm
(2.3819 in)

Height

37 mm
(1.4567 in)

Description

Mono graphic OLED screen 2.42inch 128x64 pixels is mono oled display module, 128x64 pixels mono oled display screen. Mono graphic OLED display module screen-2.42inch oled screen: 2.42’’ 128x64 OLED lcd display module could be displayed in wide temperature, its working temperature could be reached to -40 degree, and 80 degree. 2.42 inch OLED screen 128x64 dots is the best display solution in the outdoor display, such as sunlight environment, and also for industrial or medical application that need the wide viewing angle and high brightness display.
