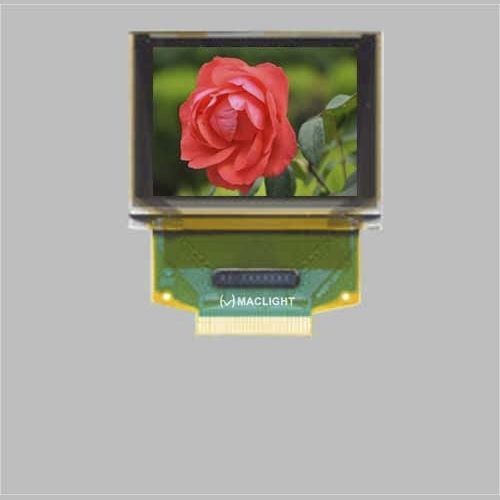

TFT LCD display module MLD127-12896C
OLEDcolorgraphic

TFT LCD display module
TFT LCD display module
TFT LCD display module
Add to favorites
Compare this product


Characteristics

Screen type
TFT LCD, OLED
Type
color, graphic
Format
128 x 96
Screen size
1.28"
Applications
industrial
Interface
SPI
Configuration/mounting
portable, outdoor
Other characteristics
wide-viewing angle, high-contrast, high-brightness, smart
Width

33.7 mm
(1.3268 in)

Height

26.9 mm
(1.0591 in)

Description

OLED screen 1.27 inch 128x96 pixels is a color oled display module, 128x96 pixels color oled display screen. The 1.27 inch color oled display, is a graphic passive matrix oled display, it have 128x96 dots, wide viewing angle, wide temperature, high brightness, high contrast, fast response time. OLED display module screen-1.27 inch color oled: because it is OLED display module, oled could be emitting light by itself, no need for backlight, so oled display module would be thinner than tft lcd module, and it don't like tft lcd, oled display have no viewing angle limited, OLED display is wide/full viewing angle, oled display have excellent display performance in all viewing angle. 1.27’’ 128x96 OLED lcd display module could be displayed in wide temperature, its working temperature could be reached to -40 degree, and 80 degree. 1.27 inch OLED screen 128x96 dots for Arduino is the best display solution in the outdoor display, such as sunlight environment, and also for industrial or medical application that need the wide viewing angle and high brightness display. And it’s often used for smart watch, MP3, function cellphone, portable health device and many others application.
